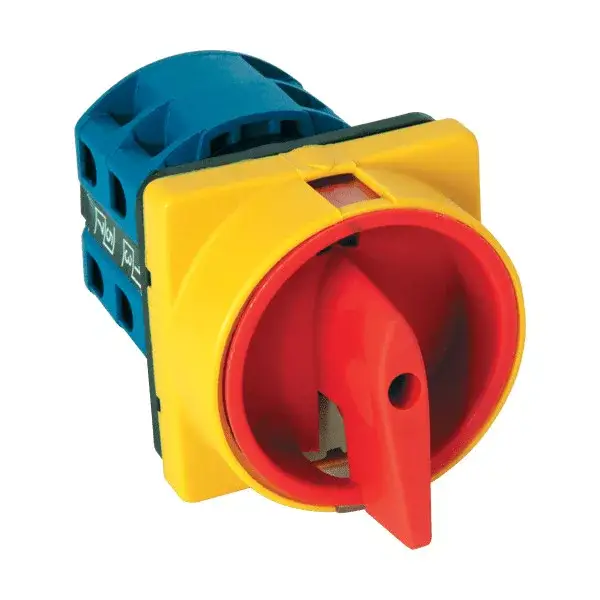

Biztonságos fizetés FORGÓ KAPCSOLÓ LW26GS-25/04 25A, 2 SZINT , 2 POZÍCIÓS

Technical characteristics:
– Power supply voltage: 230/400V, 50Hz
– Number of levels: 2
– Number of positions: 2
– Insulation voltage: 690V
– Impulse voltage withstand: 6000V
– Mechanical wear resistance: 3х105 commutation cycles
– Operating temperature: -10°С – +50°С
– Humidity: 35 – 85%RH
– Commutation capacity: 20-63А
– Resistant to UV rays plastic
– Cable connection: screw joining
– Tightening torque of the bolt: 1.33Nm
– Maximum section of the power supply conductors: 16.0mm2

Mounting:
– Directly to the control panel
– Thickness of the surface: max 5mm
