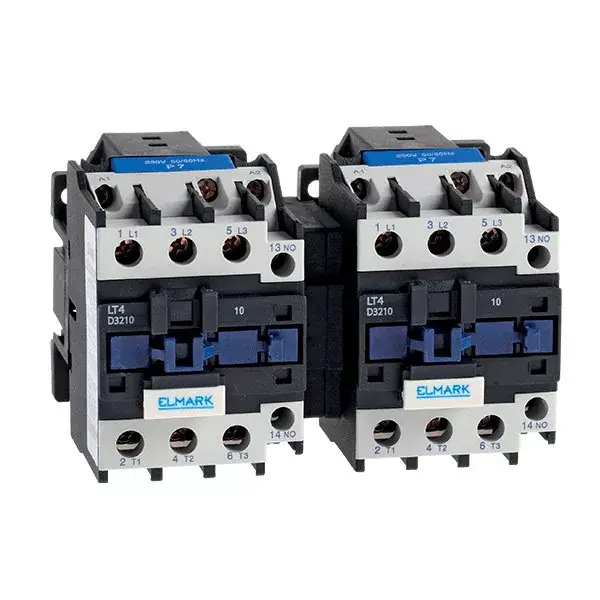

Expressz szállítás IRÁNYVÁLTÓ MÁGNESKAPCSOLÓ LT4-D 95A 230

Technical characteristics:
– Rated current: 18-95А
– Operaton class : АС3
– Rated operating voltage of the controlling coil: 230V АC,50/60Hz
– Rated operating voltage of the power circuit: up to 690V АС
– Insulation voltage: 690V
– Surge voltage wear resistance: &amp,gt,8000V
– Number of contacts: 3 NO power contacts +1NO operative
&amp,nbsp, (for contactors over 40А there is also additional 1NC contact)
– Electrical wear resistance (number of cycles): &amp,ge,1000000
– Mechanical wear resistance (number of cycles): &amp,ge,10000000
– Number of cycles (switching on) per hour: up to 600
– Ambient temperature : -10&amp,deg, to 65&amp,ordm,С
– Maximum altitude: 2000m

n

Advantages:
– Material: resistant to UV rays, self-extinguishing
– Switching ON of electrical motors in one direction of rotation and turning (reversing) of the rotation direction at outside command.
– No option for simultaneous switching ON of the two contactors in the group due to mechanical interlock
– High reliability of the current parameters
– Secure separation of the power contacts
– Easy mounting
– Long life

n

Functions:
– The contactor is used for reverse control of inductive motor with short circuited rotor
– Developing of control systems

n

Applications:
– Industry
– Services

n

Mounting: On a DIN rail or using bolts to flat surface in a vertical position with maximum gradient of &amp,plusmn,5&amp,deg,

n

Standards: EN60947-1, EN60947-4-1, EMC, LVD
