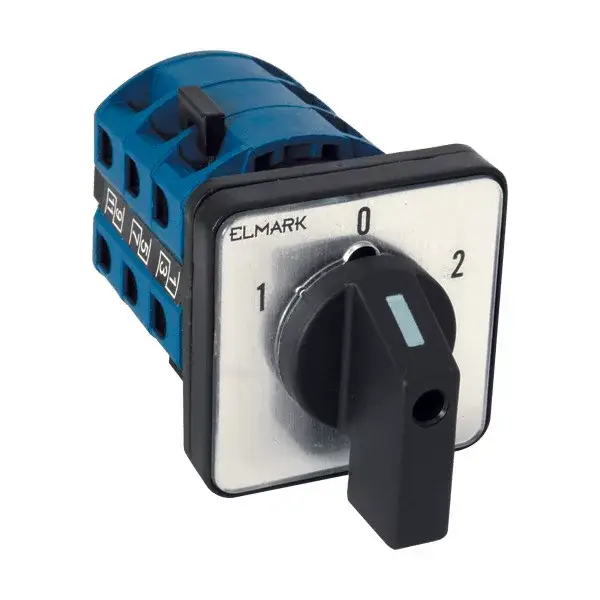

FORGÓ KAPCSOLÓ LW26-125N 125A , 3 SZINT , 3 POZÍCIÓS Vedd meg online

Technical characteristics:
– Power supply voltage: 230/400V, 50Hz
– Number of levels: 3
– Number of positions: 3
– Insulation voltage: 690V
– Impulse voltage withstand: 6000V
– Mechanical wear resistance: 3х105 commutation cycles
– Operating temperature: -10°С – +50°С
– Humidity: 35 – 85%RH
– Commutation capacity: 20-160А
– Resistant to UV rays plastic
– Cable connection: screw joining
– Tightening torque of the bolt: 1.33Nm
– Maximum section of the power supply conductors: 50.0mm2

Mounting:
– Directly to the control panel
– Thickness of the surface: max 5mm

Standards: EN 60947-1; EN 60947-3-1
